AcuSeek NEW HOT
add compare icon

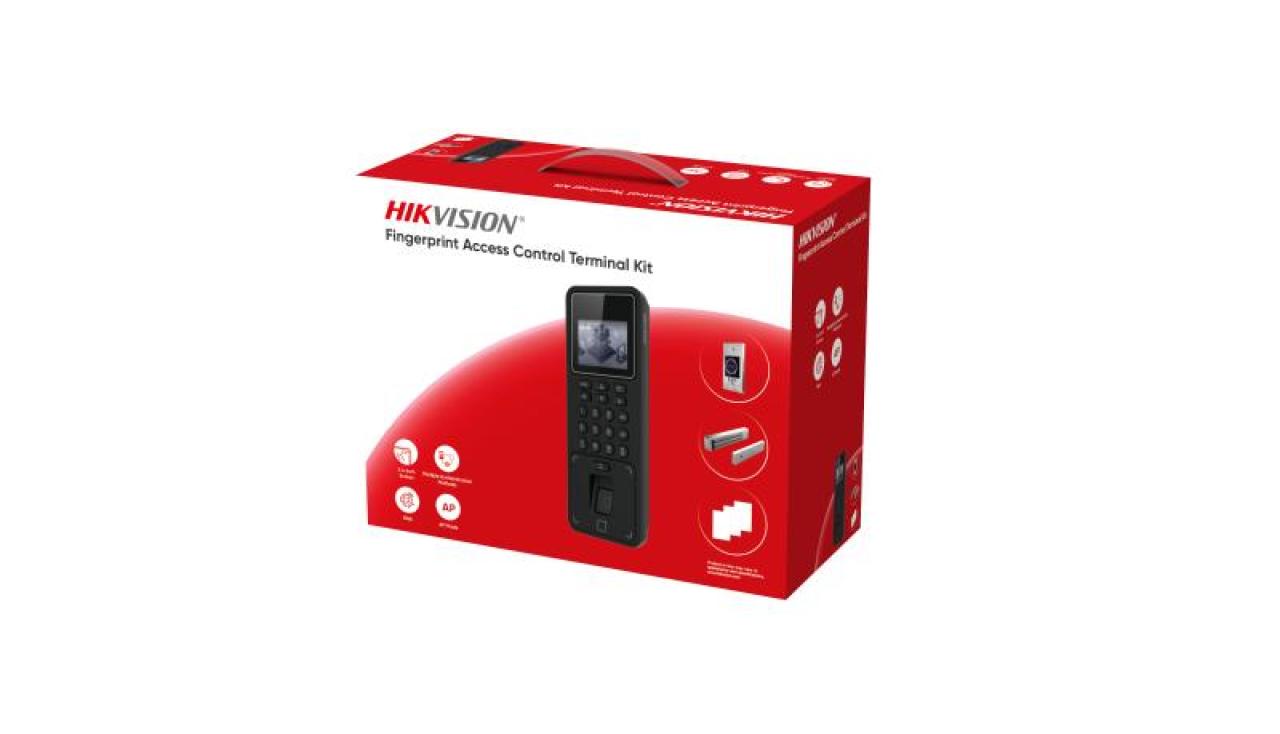

Fingerprint Access Control Terminal Kit

  • 2.4-inch LCD screen
  • Multiple authentication methods, including face, fingerprint, card (M1 card), and PIN, etc.
  • Max. 3000 cards, 3000 fingerprints and 100,000 events
  • Supports ISAPI and ISUP 5.0 protocols
  • Configuration via the PC web client and mobile web client
  • Supports wired network and Wi-Fi (AP mode)
  • Supports wiring with secure door control unit or card reader via RS-485
  • Supports access control and local time and attendance function
  • DS-K4H255S Single-Door Magnetic Lock
  • Magnetic lock supports up to 272 kg (600 Lbs) of thrust
  • Power supply can be 12 VDC or 24 VDC, (default voltage is 12 VDC)
  • Suitable for wooden door, glass door, metal door
  • High strength material，anodized aluminum housing
  • Magnetic lock , completely using electromagnetic suction work
  • Abrasion-proof materials
  • DS-K4H255-LZ Single-Door Magnetic Lock Bracket
  • Bracket for DS-K4H255S
  • L bracket is used for fixed lock body
  • Z bracket is used for suction plate fixed, is equipped with antiskid and structure adjustment
  • DS-K7P07 Exit Button
  • Touchless exit button
  • Stainless steel panel
  • LED indicator status: Green/blue LED indicates working/standby
  • Dimension(L×W×H): 115×70×16mm（4.53"×2.76"×0.63"）
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KAS808
View more View Less
DS-KAS808
Data Sheet

Specification

  • Access Control Terminal/System
  • CPU900 MHz
  • Flash4 GB
  • RAM256 MB
  • Operating systemLinux
  • Access Control Terminal/Screen parameters
  • Screen size2.4 inch
  • TypeLCD
  • Resolution320 × 240
  • Access Control Terminal/Audio
  • Audio outputBuilt-in buzzer
  • Access Control Terminal/General
  • Supplement lightWhite light
  • Power supply12 VDC
  • Power consumption≤ 6 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity0 to 90% (No condensing)
  • Protective levelIP 65
  • Dimensions172 mm × 76 mm × 27.5 mm (6.77" × 2.99" × 1.08")
  • InstallationWall mounting
  • Net weight: 0.377 kg (0.831 lb) Rough weight: 0.562 kg (1.239 lb)
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
  • KeypadSupport
  • Access Control Terminal/Network parameters
  • Network protocolISAPI, ISUP 5.0
  • Wired networkSupport
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
  • Access Control Terminal/Interface
  • Network interface1 RJ-45, 10/100 M self-adaptive
  • PoESupport
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
  • Access Control Terminal/Capacity
  • Fingerprint capacity3000
  • Card capacity3000
  • Event capacity100,000
  • Access Control Terminal/Authentication
  • Fingerprint moduleOptical fingerprint module
  • Fingerprint recognition duration＜ 1 s
  • Fingerprint comparing mode1:1 and 1:N
  • Fingerprint FAR≤ 0.001 %
  • Fingerprint FRR≤ 0.01 %
  • Card typeM1 card
  • Card reading duration＜ 1 s
  • Magnetic Lock/General
  • ModelDS-K4H255S
  • Unlock methodCurrent interruption
  • Maximum holding forceMax. 272 kg (600 Lbs)
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity0 to 95 % (relative humidity)
  • DimensionsLock Body: 250 mm × 28 mm × 48 mm (9.8" × 1.1" × 1.9") Armature Plate: 180 mm × 38 mm × 12 mm (7.1" × 1.5" × 0.5")
  • 1.9 kg (4.2 lb)
  • Suitable doorGlass door, wooden door, and metal door
  • Shell performanceHard Anodizing Electroplating Operated
  • Lock bodyEco-friendly Zinc Electroplating Operated
  • Armature plateEco-friendly Zinc Electroplating Operated
  • Card/General
  • ModelFM11RF08-M1
  • RAM1 K byte
  • Card reading frequency13.56 MHz
  • Card propertyThin card
  • FunctionRead/write
  • Card reading distance≤10 cm
  • Working temperature-20 °C to 75 °C (-4 °F to 167 °F)
  • Bracket of Magnetic Lock/General
  • DimensionsL-bracket: 250 mm × 46 mm × 30 mm (9.8" × 1.8" × 1.2") Z-bracket: 180 mm × 47 mm × 47 mm (7.1" × 1.9" × 1.9")
  • ModelDS-K4H255-LZ
  • Suitable DoorWooden Door, Glass Door, Metal Door
  • Shell performanceHigh strength aluminum alloy surface sandblasting oxidation
  • 0.5 kg (1.1 lb)
  • Exit Button/General
  • ModelDS-K7P07
  • Working temperature-20 °C to 55 °C (-4 °F to 131 °F)
  • Working humidity0 to 95% (relative humidity)
  • Dimensions115 mm × 70 mm × 16 mm (4.53" × 2.76" × 0.63")
  • 0.13 kg (0.27 lb)
  • MaterialPanel: stainless steel
  • Output contactNO/NC/COM contact
  • Suitable doorHollow door frame (concealed installation)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Access Control Terminal/System
CPU
900 MHz
Flash
4 GB
RAM
256 MB
Operating system
Linux
Access Control Terminal/Screen parameters
Screen size
2.4 inch
Type
LCD
Resolution
320 × 240
Access Control Terminal/Audio
Audio output
Built-in buzzer
Access Control Terminal/General
Supplement light
White light
Power supply
12 VDC
Power consumption
≤ 6 W
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
0 to 90% (No condensing)
Protective level
IP 65
Dimensions
172 mm × 76 mm × 27.5 mm (6.77" × 2.99" × 1.08")
Installation
Wall mounting
Net weight: 0.377 kg (0.831 lb) Rough weight: 0.562 kg (1.239 lb)
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
Keypad
Support
Access Control Terminal/Network parameters
Network protocol
ISAPI, ISUP 5.0
Wired network
Support
Wi-Fi
Support, 2.4 G, 802.11b/g/n
Access Control Terminal/Interface
Network interface
1 RJ-45, 10/100 M self-adaptive
PoE
Support
Lock control
1
Exit button
1
Door contact input
1
TAMPER
1
RS-485
1 RS-485 (Half duplex, HIKVISION)
Wiegand
1 Wiegand(Hik 26bit,Hik 34bit)
USB
1
Access Control Terminal/Capacity
Fingerprint capacity
3000
Card capacity
3000
Event capacity
100,000
Access Control Terminal/Authentication
Fingerprint module
Optical fingerprint module
Fingerprint recognition duration
＜ 1 s
Fingerprint comparing mode
1:1 and 1:N
Fingerprint FAR
≤ 0.001 %
Fingerprint FRR
≤ 0.01 %
Card type
M1 card
Card reading duration
＜ 1 s
Magnetic Lock/General
Model
DS-K4H255S
Unlock method
Current interruption
Maximum holding force
Max. 272 kg (600 Lbs)
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
0 to 95 % (relative humidity)
Dimensions
Lock Body: 250 mm × 28 mm × 48 mm (9.8" × 1.1" × 1.9") Armature Plate: 180 mm × 38 mm × 12 mm (7.1" × 1.5" × 0.5")
1.9 kg (4.2 lb)
Suitable door
Glass door, wooden door, and metal door
Shell performance
Hard Anodizing Electroplating Operated
Lock body
Eco-friendly Zinc Electroplating Operated
Armature plate
Eco-friendly Zinc Electroplating Operated
Card/General
Model
FM11RF08-M1
RAM
1 K byte
Card reading frequency
13.56 MHz
Card property
Thin card
Function
Read/write
Card reading distance
≤10 cm
Working temperature
-20 °C to 75 °C (-4 °F to 167 °F)
Bracket of Magnetic Lock/General
Dimensions
L-bracket: 250 mm × 46 mm × 30 mm (9.8" × 1.8" × 1.2") Z-bracket: 180 mm × 47 mm × 47 mm (7.1" × 1.9" × 1.9")
Model
DS-K4H255-LZ
Suitable Door
Wooden Door, Glass Door, Metal Door
Shell performance
High strength aluminum alloy surface sandblasting oxidation
0.5 kg (1.1 lb)
Exit Button/General
Model
DS-K7P07
Working temperature
-20 °C to 55 °C (-4 °F to 131 °F)
Working humidity
0 to 95% (relative humidity)
Dimensions
115 mm × 70 mm × 16 mm (4.53" × 2.76" × 0.63")
0.13 kg (0.27 lb)
Material
Panel: stainless steel
Output contact
NO/NC/COM contact
Suitable door
Hollow door frame (concealed installation)
