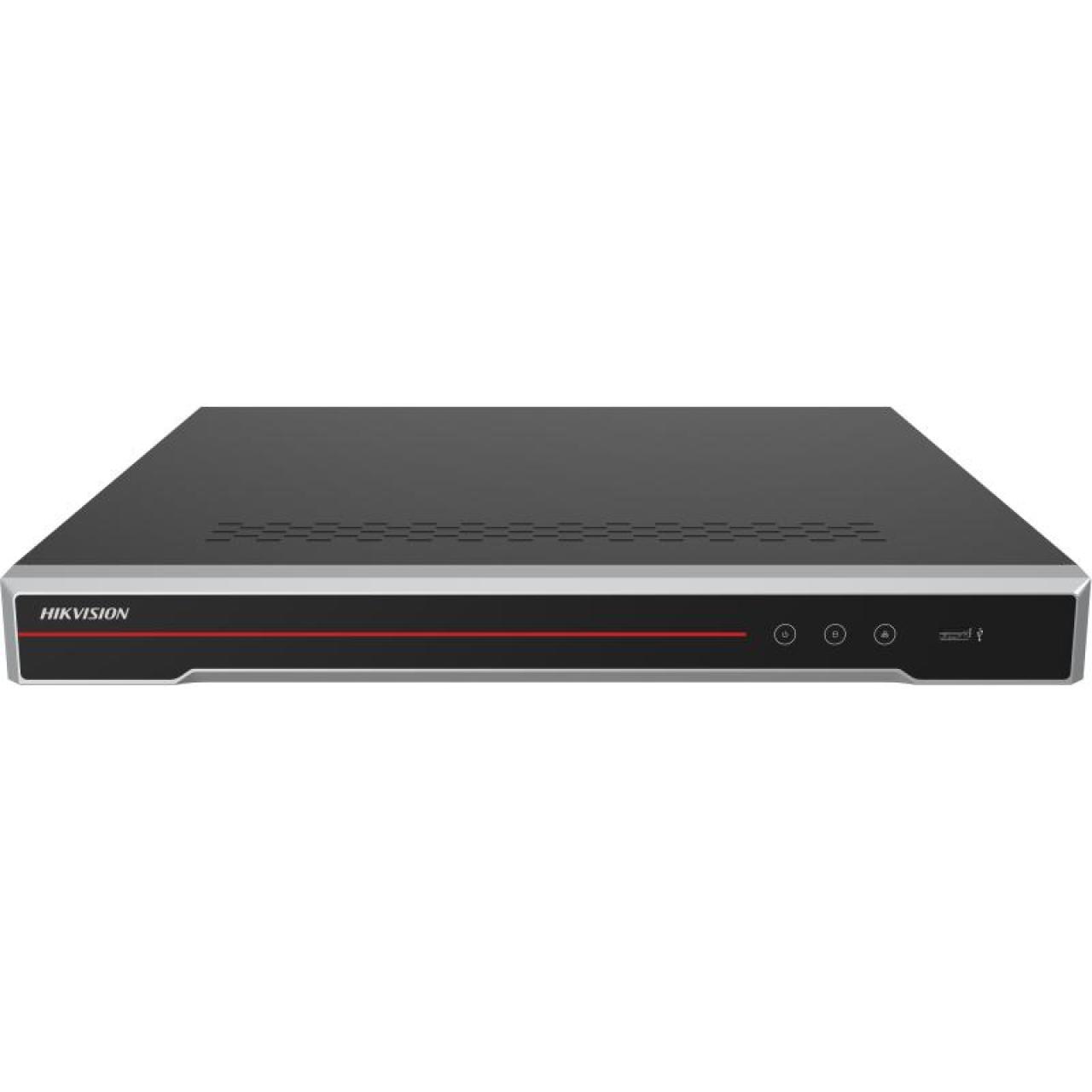

DeepinMind Pro NVR

Name: DeepinMind Pro NVR
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP decoding capacity
H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on Guanlan Large-Scale AI Models
Up to 16-ch IP cameras can be connected
Up to 8-ch AcuSeek and AcuSearch function8
Up to 8-ch perimeter protection
Up to 8-ch facial recognition for video stream, or up to 8-ch facial recognition for face picture
Up to 8-ch video structuralization
Up to 8-ch IP speakers can be connected

View Less

Data Sheet

Available models:

iDS-7616NXI-P2

View more View Less

iDS-7616NXI-P2 AcuSeek

Specification
Resources
Accessories

Data Sheet

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch, AcuSeek
AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
Engine1. One GPU Engine, only for AcuSeek modeling and OVD (two algorithm enable at the same time) 2. One GPU Engine, can run an intelligent algorithm, engine mode is adjustable, performance of each GPU engine (choose 1 from 4): Facial recognition: 8-ch (4MP) video target capture or 16-ch image comparison Perimeter protection: 12-ch (2MP) video analysis or 16-ch image analysis Video Structuralization: 8-ch (2MP) video structured analysis AcuSearch: support 8-ch (2MP) by NVR, all channels AcuSearch modeling and 8 face picture modeling per second

AcuSearch
By NVR1. Up to 8ch-2MP / 4ch-4MP / 2ch-8MP normal IP camera access to achieve AcuSearch. 2. One GPU engine for target capture and AcuSearch modeling. 3. Face comparison speed: 8-ch
By Camera1. All channels, up to 300,000 targets per day. 2. The camera should enable AcuSearch function.

AcuSeek
Performance1. The NVR supports 8ch-2MP / 4ch-4MP / 2ch-8MP normal IP camera access to achieve AcuSeek. 2. One GPU engine for AcuSeek modeling 3. If the camera support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets per day.
Search LanguageEnglish, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic, Turkish, Spanish

Perimeter Protection
By NVRPerimeter protection without Large Model: 12-ch 2 MP or 8ch-4MP or 4-ch 8MP
By CameraPerimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization
Structured Analysis8-ch 2 MP 6-ch 4 MP 3-ch 8 MP

Target Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 32 face picture libraries, up to 100,000 face pictures in list library
Face Picture Comparison (Captured from Camera)16-ch (16-ch for each engine); Comparison speed: 24 pictures per second
Facial Detection and Analytics PerformanceSupported face capture channels: up to 2MP-8ch / 4MP-8ch / 8MP-4ch.

ANPR
By CameraAll channels
Plate AttributesPlate number, license plate color, license plate type
Vehicle AttributesVehicle brand, vehicle color, vehicle type

Video and Audio
IP Video Input16-ch Up to 32 MP resolution *: NVR supports up to 8-ch 32 MP / 24 MP IP video inputs
Incoming Bandwidth256 Mbps
Outgoing Bandwidth256 Mbps
HDMI Output8K（7680×4320）/30Hz，4K（3840×2160）/60Hz，4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz
VGA Output1080P (1920 × 1080)/60 Hz
Video Output ModeHDMI/VGA independent output
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265/H.265+/H.264/H.264+
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@16 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4MP(30fps)
Synchronous Playback16-ch
Recording Resolution32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Network
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA2 SATA interface
CapacityUp to 20 TB capacity for each HDD
Serial Interface1 RS-232, 1 RS-485 (half-duplex)
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out4/1

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian,Hebrew,Farsi,Azeri,Burmese
Power Supply12V DC, 7.5 A
Consumption≤ 50 W
Working Temperature-10 to 55° C (14 to 131° F)
Working Humidity10 to 90%
Dimension (W × D × H)444 × 415 × 46 mm (17.48"× 16.34"× 1.81")
≤ 4 kg (without HDD, 8.8 lb.)

Certification
Obtained CertificationCE, CB, RCM, LOA, ROHS, WEEE, REACH, 运输鉴定
CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, AcuSearch, AcuSeek

AI by Camera

Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA

Engine

1. One GPU Engine, only for AcuSeek modeling and OVD (two algorithm enable at the same time) 2. One GPU Engine, can run an intelligent algorithm, engine mode is adjustable, performance of each GPU engine (choose 1 from 4): Facial recognition: 8-ch (4MP) video target capture or 16-ch image comparison Perimeter protection: 12-ch (2MP) video analysis or 16-ch image analysis Video Structuralization: 8-ch (2MP) video structured analysis AcuSearch: support 8-ch (2MP) by NVR, all channels AcuSearch modeling and 8 face picture modeling per second

AcuSearch

By NVR

1. Up to 8ch-2MP / 4ch-4MP / 2ch-8MP normal IP camera access to achieve AcuSearch. 2. One GPU engine for target capture and AcuSearch modeling. 3. Face comparison speed: 8-ch

By Camera

1. All channels, up to 300,000 targets per day. 2. The camera should enable AcuSearch function.

AcuSeek

Performance

1. The NVR supports 8ch-2MP / 4ch-4MP / 2ch-8MP normal IP camera access to achieve AcuSeek. 2. One GPU engine for AcuSeek modeling 3. If the camera support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets per day.

Search Language

English, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic, Turkish, Spanish

Perimeter Protection

By NVR

Perimeter protection without Large Model: 12-ch 2 MP or 8ch-4MP or 4-ch 8MP

By Camera

Perimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization

Structured Analysis

8-ch 2 MP 6-ch 4 MP 3-ch 8 MP

Target Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 32 face picture libraries, up to 100,000 face pictures in list library

Face Picture Comparison (Captured from Camera)

16-ch (16-ch for each engine); Comparison speed: 24 pictures per second

Facial Detection and Analytics Performance

Supported face capture channels: up to 2MP-8ch / 4MP-8ch / 8MP-4ch.

ANPR

By Camera

All channels

Plate Attributes

Plate number, license plate color, license plate type

Vehicle Attributes

Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input

16-ch Up to 32 MP resolution *: NVR supports up to 8-ch 32 MP / 24 MP IP video inputs

Incoming Bandwidth

256 Mbps

Outgoing Bandwidth

256 Mbps

HDMI Output

8K（7680×4320）/30Hz，4K（3840×2160）/60Hz，4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz

VGA Output

1080P (1920 × 1080)/60 Hz

Video Output Mode

HDMI/VGA independent output

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265/H.265+/H.264/H.264+

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@16 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4MP(30fps)

Synchronous Playback

16-ch

Recording Resolution

32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interface

Capacity

Up to 20 TB capacity for each HDD

Serial Interface

1 RS-232, 1 RS-485 (half-duplex)

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm In/Out

4/1

General

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian,Hebrew,Farsi,Azeri,Burmese

Power Supply

12V DC, 7.5 A

Consumption

≤ 50 W

Working Temperature

-10 to 55° C (14 to 131° F)

Working Humidity

10 to 90%

Dimension (W × D × H)

444 × 415 × 46 mm (17.48"× 16.34"× 1.81")

≤ 4 kg (without HDD, 8.8 lb.)

Certification
