*Images are for illustrative purposes. Actual product appearance and specifications may vary.
AcuSeek NEW HOT
add compare icon

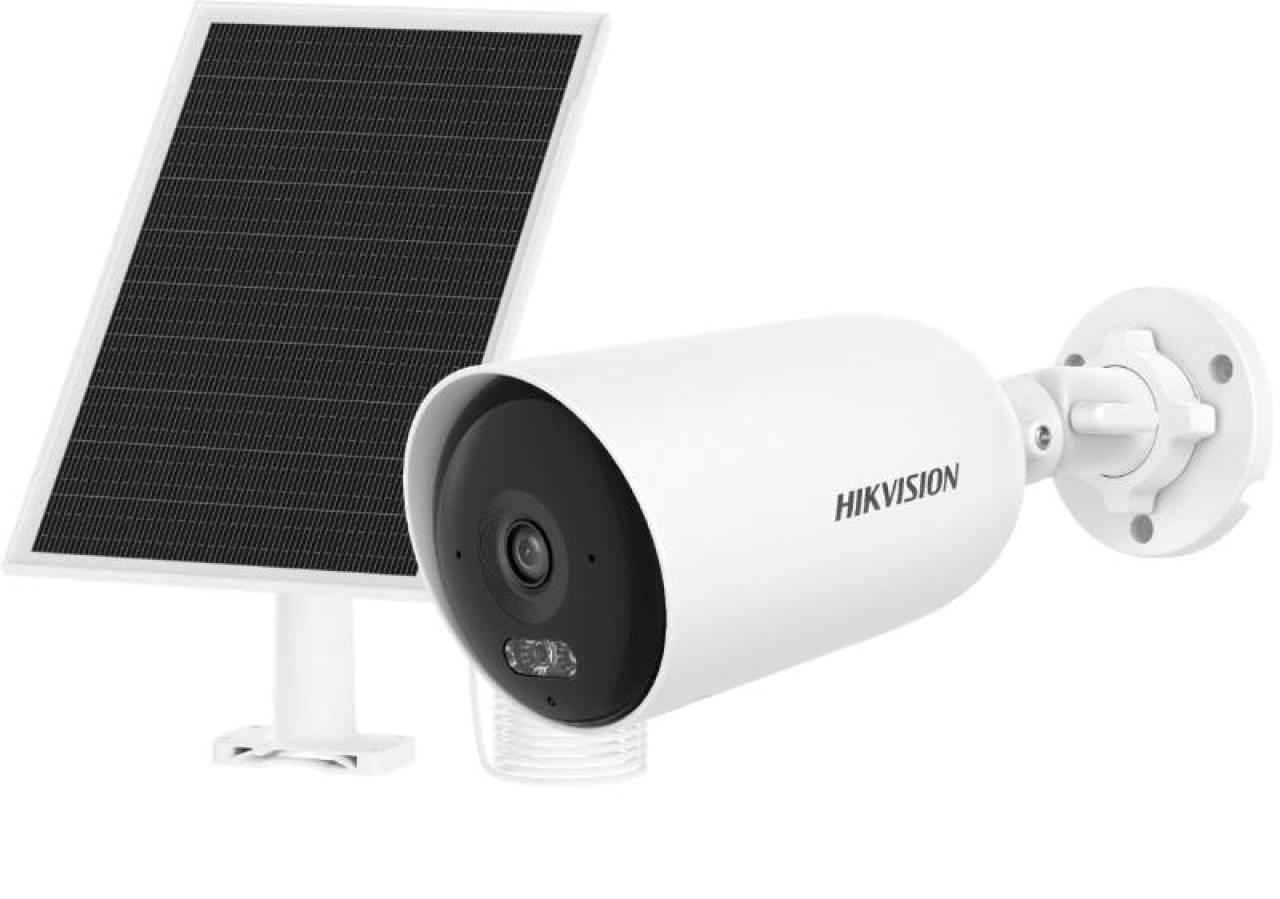

4MP 24/7 Solar 4G Cold Proof Camera

  • Support AOV Mode：24/7 video recording
  • 8 W solar panel and 10000 mAh (3.7 V) battery
  • Support 4G LTE data transmission
  • Smart Hybrid Light: 30 m white light and IR
  • Motion Detection 2.0: Support person and vehicle detection
  • Built-in microphone and speaker, support two-way audio
  • Water and dust resistant (IP66)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CFS04/4G(2.8mm)/O-STD(Cold Proof)/EU
DS-2CFS04/4G(4mm)(Cold Proof)
View more View Less
DS-2CFS04/4G(Cold Proof)
Data Sheet

Specification

  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
  • Lens
  • Focal Length & FOV2.8 mm, horizontal FOV 98.5°, vertical FOV 53.1°, diagonal FOV 115.9° 4 mm, horizontal FOV 78.3°, vertical FOV 42.8°, diagonal FOV 91.2
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • ApertureF1.6
  • Lens MountM12
  • Iris TypeFixed
  • Pixel Density
  • DORIFixed lens: 2.8 mm D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m 4 mm D: 78.0 m, O: 31 m, R: 15.6 m, I: 7.8 m
  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • IR Wavelength850 nm
  • Smart Supplement LightYes
  • Video
  • Main Stream50 Hz: 12.5 fps (2560 x 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
  • Video Compression Main stream: H.265
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Audio
  • Audio Compression G.711ulaw
  • Audio Bit Rate64 Kbps(G.711ulaw/G.711alaw)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIISAPI,SDK
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • ClientHik-Connect
  • Mobile Communication
  • StandardLTE-TDD,LTE-FDD
  • FrequencyEU: LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41
  • Uplink and Downlink Data RateCat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
  • SIM Card TypeNano SIM
  • Image
  • Image Settingsbrightness,contrast,white balance,saturation,sharpness
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Wide Dynamic Range (WDR)Digital WDR
  • Interface
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in MicrophoneYes,1 built-in microphone
  • Reset KeyYes
  • Built-in SpeakerYes, 1 built-in speaker
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle))
  • LinkageNotify surveillance center,trigger recording,trigger capture,audible warning,upload to memory card
  • General
  • MaterialPlastic
  • DimensionØ81.6 mm × 221.3 mm (Ø3.21" × 8.71")
  • Package Dimension320 mm × 228 mm × 148 mm (12.60" × 8.98" × 5.83")
  • Approx. 510 g (1.12 lb.)
  • With Package WeightApprox. 1560 g (3.44 lb.)
  • Startup and Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
  • General FunctionMirror,flash log
  • Storage Conditions-20 °C to 25 °C (-4 °F to 77 °F). Humidity 95% or less (non-condensing)
  • Battery
  • Battery TypeLithium
  • Capacity10000 mAh (3.7 V)
  • Max. Charging Voltage8.4 V
  • Battery Voltage 6 V to 8.4 V
  • Operating TemperatureCharging: -10°C to 45°C (14°F to 113°F) Discharging: -20°C to 50°C (-4°F to 131°F)
  • Cycle LifetimeCap(800th)≥80%
  • Approval
  • RFCE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
  • SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP66: IEC 60529-2013
  • Solar Power
  • Solar Panel TypeMonocrystalline silicon solar panel
  • Power Consumption8 W
  • Solar Panel Dimensions & WeightDimensions: 263.8 mm × 171.7 mm × 18.5 mm (10.39" × 6.76" × 0.73") Weight: 450 g (0.99 lb.)
  • Working Temperature-40 °C to 85 °C (-40°F to 185°F)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 98.5°, vertical FOV 53.1°, diagonal FOV 115.9° 4 mm, horizontal FOV 78.3°, vertical FOV 42.8°, diagonal FOV 91.2
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Aperture
F1.6
Lens Mount
M12
Iris Type
Fixed
Pixel Density
DORI
Fixed lens: 2.8 mm D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m 4 mm D: 78.0 m, O: 31 m, R: 15.6 m, I: 7.8 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 12.5 fps (2560 x 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
Video Compression
Main stream: H.265
Video Bit Rate
32 Kbps to 8 Mbps
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Audio
Audio Compression
G.711ulaw
Audio Bit Rate
64 Kbps(G.711ulaw/G.711alaw)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Simultaneous Live View
Up to 6 channels
API
ISAPI,SDK
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Client
Hik-Connect
Mobile Communication
Standard
LTE-TDD,LTE-FDD
Frequency
EU: LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41
Uplink and Downlink Data Rate
Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
SIM Card Type
Nano SIM
Image Settings
brightness,contrast,white balance,saturation,sharpness
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Wide Dynamic Range (WDR)
Digital WDR
Interface
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes,1 built-in microphone
Reset Key
Yes
Built-in Speaker
Yes, 1 built-in speaker
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle))
Linkage
Notify surveillance center,trigger recording,trigger capture,audible warning,upload to memory card
General
Material
Plastic
Dimension
Ø81.6 mm × 221.3 mm (Ø3.21" × 8.71")
Package Dimension
320 mm × 228 mm × 148 mm (12.60" × 8.98" × 5.83")
Approx. 510 g (1.12 lb.)
With Package Weight
Approx. 1560 g (3.44 lb.)
Startup and Operating Conditions
-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
General Function
Mirror,flash log
Storage Conditions
-20 °C to 25 °C (-4 °F to 77 °F). Humidity 95% or less (non-condensing)
Battery
Battery Type
Lithium
Capacity
10000 mAh (3.7 V)
Max. Charging Voltage
8.4 V
Battery Voltage
6 V to 8.4 V
Operating Temperature
Charging: -10°C to 45°C (14°F to 113°F) Discharging: -20°C to 50°C (-4°F to 131°F)
Cycle Lifetime
Cap(800th)≥80%
Approval
RF
CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP66: IEC 60529-2013
Solar Power
Solar Panel Type
Monocrystalline silicon solar panel
Power Consumption
8 W
Solar Panel Dimensions & Weight
Dimensions: 263.8 mm × 171.7 mm × 18.5 mm (10.39" × 6.76" × 0.73") Weight: 450 g (0.99 lb.)
Working Temperature
-40 °C to 85 °C (-40°F to 185°F)
