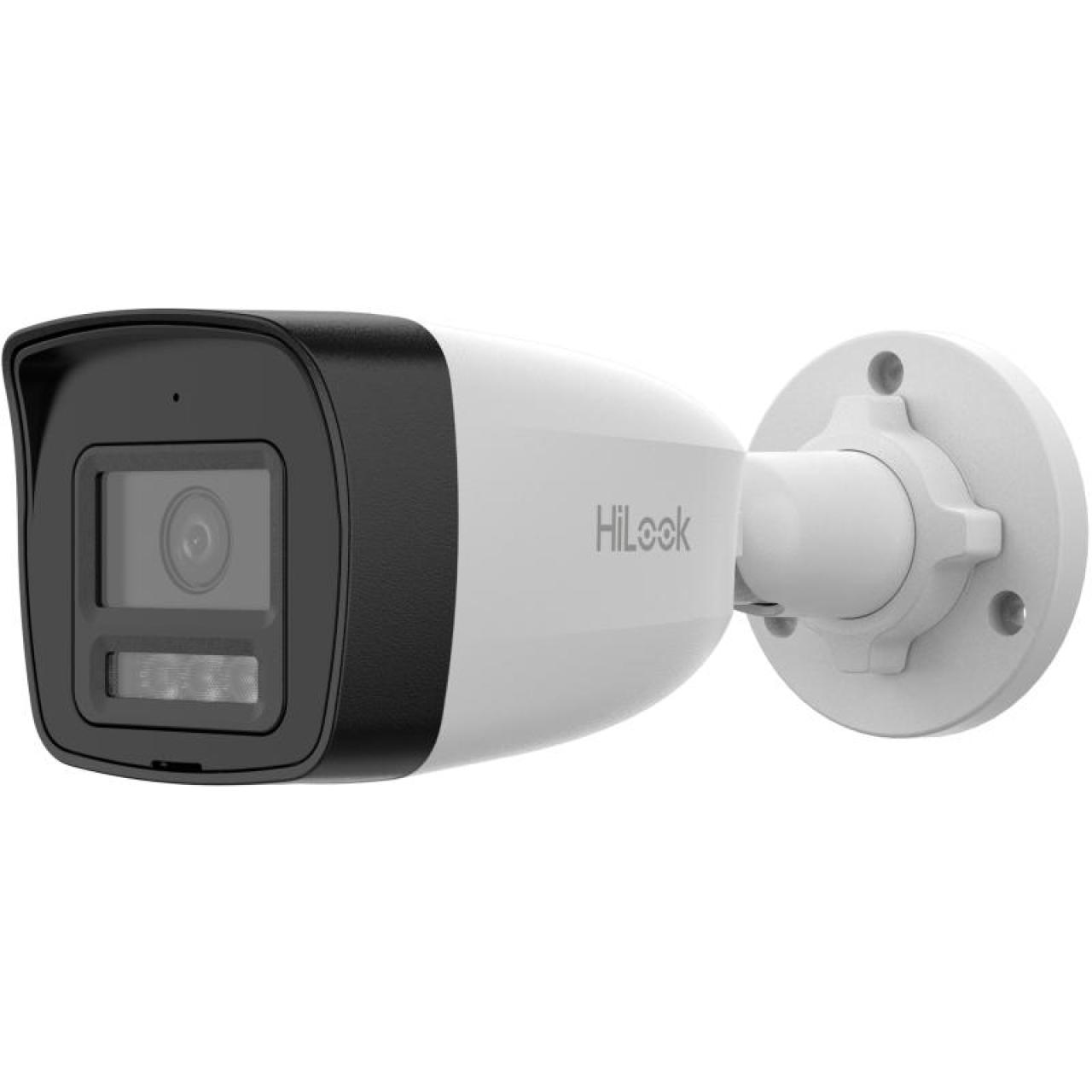

2 MP Smart Hybrid Light 3.0 Fixed Bullet Network Camera

Name: 2 MP Smart Hybrid Light 3.0 Fixed Bullet Network Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Enhanced Image Quality: delivers better imaging performance
Motion Detection 3.0: focuses on person and vehicle classification based on deep learning
Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
Built-in microphone for real-time audio security
-F: Support on-board storage up to 512 GB (SD card slot)
/SX: Supports Live Guard (white light or red-blue light) to deter intruders and Two-way Audio
Dust and water resistant (IP67)

View Less

Ficha Técnica

Modelos disponibles:

IPC-B120HAA-LU(2.8mm)(HiLookSTD)

IPC-B120HAA-LU(4mm)(HiLookSTD)

View more View Less

IPC-B120HAA-LU(F)(/SX) ^NEW

Especificación
Recursos
Accesorios

Ficha Técnica

Cámara
Sensor de imagen 1/2.9" Progressive Scan CMOS
Max. Resolución 1920 × 1080
Iluminación mínima Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Tiempo de obturación 1 s to 1/100,000 s
Día y Noche IR cut filter
Ajuste de ángulo Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lente
Lente Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, Horizontal FOV:103°, Vertical FOV:56°, Diagonal FOV:121° 4 mm, Horizontal FOV:82°, Vertical FOV:45°, Diagonal FOV:95°
Montura del lente M12
Enfoque NA
Iris Type Fixed
Apertura F1.6
Depth of Field 2.8 mm: 1 m~∞ 4 mm: 1.2 m~∞

Densidad de pixeles
O2DCPVS 2.8 mm: Overview: 54.6 m, Outline: 27.3 m, Discern: 13.7 m, Perceive: 8.7 m, Characterize: 4.4 m, Validate: 2.2 m, Scrutinize: 0.7 m 4 mm: Overview: 76.3 m, Outline: 38.1 m, Discern: 19.1 m, Perceive: 12.2 m, Characterize: 6.1 m, Validate: 3.1 m, Scrutinize: 1 m

Iluminador
Tipo de luz suplementaria IR,White Light
Rango de luz suplementaria Up to 30 m
Luz de suplemento inteligente Yes
IR Wavelength 850 nm

Vídeo
Main stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 24 fps (640 × 480, 640 × 360)
Third Stream NA
Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate 32 Kbps to 8 Mbps
Tipo H.264 Baseline Profile,Main Profile,High Profile
Tipo H.265 Main Profile
Bit Rate Control CBR,VBR
Codificación de video escalable (SVC) YES
Región de interés (ROI) 1 fixed regions for each stream
Recorte objetivo NO

Audio
Tipo de audio Mono sound
Compresión de audio -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Velocidad de bits de audio -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio -U: 8 kHz/16 kHz
Filtro de ruido ambiental -U: Yes

Red
Protocolos DNS,802.1X,HTTP,WebSockets,IPv6,WebSocket,SFTP,QoS,SSL/TLS,RTP,RTCP,UDP,IPv4,DDNS,SNMP,RTSP,UPnP,NTP,DHCP,HTTPS,IGMP,FTP,TCP/IP,ICMP
Vista en vivo simultánea Up to 6 channels
API ISAPI,EZVIZ,ONVIF,ISUP,SDK
Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
Seguridad IP address filter, security audit log, TLS 1.3, watermark, complicated password, WSSE and digest authentication for Open Network Video Interface, AES128/256, control timeout settings, Password protection, 802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5,EAP-PEAP), HTTPS encryption, RTP/RTSP over HTTPS, basic and digest authentication for HTTP/HTTPS, TLS 1.2
Almacenamiento en red NO
Cliente iVMS-4200,HiLookVision
Navegador web Plug-in required live view: Chrome 91+, Firefox 88+, Edge 91+

Imagen
Interruptor de parámetros de imagen Yes
Configuración de imagen Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Interruptor día/noche Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Mejora de la imagen BLC,HLC,3D DNR
Máscara de privacidad 4 programmable polygon privacy masks

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage NA
Micrófono incorporado 1 built-in microphone
Altavoz incorporado NA
Audio NA
Alarma NA
Reset Key NA

Evento
Evento Básico Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle and animal)), exception
Evento inteligente NO
Linkage Notify surveillance center,send email,trigger capture -F: Audible Warning /SX: Strobe Light Flashing (White/Red-Blue, configurable)

Deep Learning Function
Perimeter Protection NO
Captura de la cara NO

General
alimentación 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W
Dimensión 69 mm × 66 mm × 185.9 mm (2.72" × 2.60" × 7.32")
Dimensión del paquete 216 mm × 121 mm × 118 mm (8.50" × 4.76" × 4.65")
Approx. 280 g (0.62 lb.)
Con peso del paquete Approx. 430 g (0.95 lb.)
Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
Función general Heartbeat,mirror,password reset via email,password protection,anti-banding
Luz intermitente NA

Certificaciones
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Seguridad CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección IP67: IEC 60529-2013

Cámara

Sensor de imagen

1/2.9" Progressive Scan CMOS

Max. Resolución

1920 × 1080

Iluminación mínima

Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Tiempo de obturación

1 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lente

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, Horizontal FOV:103°, Vertical FOV:56°, Diagonal FOV:121° 4 mm, Horizontal FOV:82°, Vertical FOV:45°, Diagonal FOV:95°

Montura del lente

M12

Enfoque

Iris Type

Fixed

Apertura

F1.6

Depth of Field

2.8 mm: 1 m~∞ 4 mm: 1.2 m~∞

Densidad de pixeles

O2DCPVS

2.8 mm: Overview: 54.6 m, Outline: 27.3 m, Discern: 13.7 m, Perceive: 8.7 m, Characterize: 4.4 m, Validate: 2.2 m, Scrutinize: 0.7 m 4 mm: Overview: 76.3 m, Outline: 38.1 m, Discern: 19.1 m, Perceive: 12.2 m, Characterize: 6.1 m, Validate: 3.1 m, Scrutinize: 1 m

Iluminador

Tipo de luz suplementaria

IR,White Light

Rango de luz suplementaria

Up to 30 m

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 24 fps (640 × 480, 640 × 360)

Third Stream

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile,Main Profile,High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR,VBR

Codificación de video escalable (SVC)

YES

Región de interés (ROI)

1 fixed regions for each stream

Recorte objetivo

Audio

Tipo de audio

Mono sound

Compresión de audio

-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Velocidad de bits de audio

-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Frecuencia de muestreo de audio

-U: 8 kHz/16 kHz

Filtro de ruido ambiental

-U: Yes

Red

Protocolos

DNS,802.1X,HTTP,WebSockets,IPv6,WebSocket,SFTP,QoS,SSL/TLS,RTP,RTCP,UDP,IPv4,DDNS,SNMP,RTSP,UPnP,NTP,DHCP,HTTPS,IGMP,FTP,TCP/IP,ICMP

Vista en vivo simultánea

Up to 6 channels

API

ISAPI,EZVIZ,ONVIF,ISUP,SDK

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Seguridad

IP address filter, security audit log, TLS 1.3, watermark, complicated password, WSSE and digest authentication for Open Network Video Interface, AES128/256, control timeout settings, Password protection, 802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5,EAP-PEAP), HTTPS encryption, RTP/RTSP over HTTPS, basic and digest authentication for HTTP/HTTPS, TLS 1.2

Almacenamiento en red

Cliente

iVMS-4200,HiLookVision

Navegador web

Plug-in required live view: Chrome 91+, Firefox 88+, Edge 91+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser

Interruptor día/noche

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Mejora de la imagen

BLC,HLC,3D DNR

Máscara de privacidad

4 programmable polygon privacy masks

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Micrófono incorporado

Yes,1 built-in microphone

Altavoz incorporado

-LU(F): NA -LU(F)/SX: 1 built-in speaker, 10 m 60 dB

Audio

Alarma

Reset Key

-LU: NA -LUF/SX: Yes

Evento

Evento Básico

Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle and animal)), exception

Evento inteligente

Linkage

Notify surveillance center,send email,trigger capture -F: Audible Warning /SX: Strobe Light Flashing (White/Red-Blue, configurable)

Deep Learning Function

Perimeter Protection

Captura de la cara

General

alimentación

LU: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W LUF: 12 VDC ± 25%, 0.57 A, max. 6.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W LU(F)/SX:12 VDC ± 25%, 0.72 A, max. 8.7 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W

Dimensión

69 mm × 66 mm × 185.9 mm (2.72" × 2.60" × 7.32")

Dimensión del paquete

216 mm × 121 mm × 118 mm (8.50" × 4.76" × 4.65")

Approx. 310 g (0.68 lb.)

Con peso del paquete

Approx. 460 g (1.01 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German

Función general

Heartbeat,mirror,password reset via email,password protection,anti-banding

Luz intermitente

-LU(F): NA -LU(F)/SX: White/Red-Blue, configurable

Certificaciones

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

Seguridad

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013
